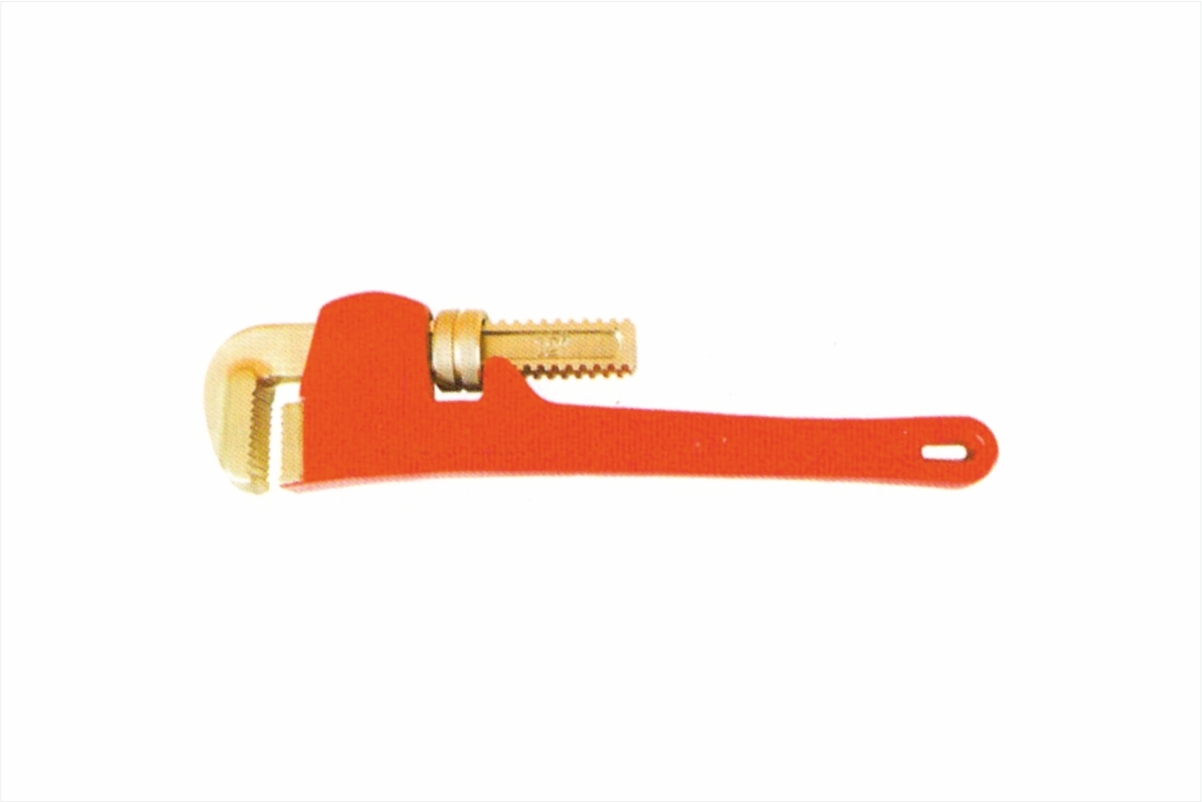

Non-Sparking Tools are the best alternative for non-sparking application purposes in potentially explosive environments. All tools are forget after casting to achieve the best quality in the market.
Caution!
These tools are not classified as anti-static because they do conduct electricity. Do not use high copper content tools (>65%) in direct contact with acetylene due to the possible formation of explosive acetylide, specially in the presence of moisture.
| Al-Cu | Be-Cu | ||||||
| Code |
L mm/Inch |
Max. girth mm |
WT g |
Code |
L mm/Inch |
Max. girth mm |
WT g |
| 17009301 | 200/8" | 25 | 380 | 17109301 | 200/8" | 25 | 420 |
| 17009302 | 250/10" | 30 | 670 | 17109302 | 250/10" | 30 | 735 |
| 17009303 | 300/12" | 40 | 955 | 17109303 | 300/12" | 40 | 1050 |
| 17009304 | 350/14" | 50 | 1195 | 17109304 | 350/14" | 50 | 1315 |
| 17009305 | 450/18" | 60 | 2050 | 17109305 | 450/18" | 60 | 2255 |
| 17009306 | 600/24" | 75 | 3150 | 17109306 | 600/24" | 75 | 3465 |
| 17009307 | 900/36" | 85 | 5345 | 17109307 | 900/36" | 85 | 5880 |
| 17009308 | 1200/48" | 110 | 11450 | 17109308 | 1200/48" | 110 | 12600 |
