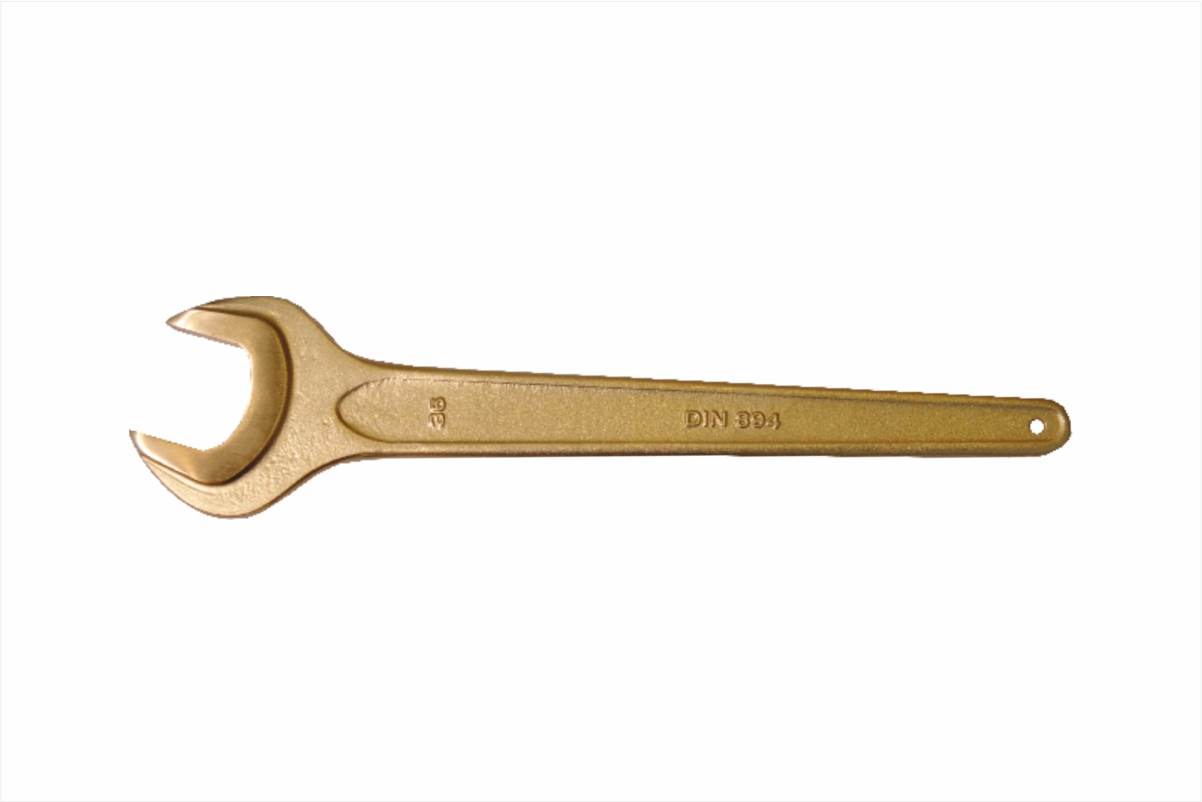

Non-Sparking Tools are the best alternative for non-sparking application purposes in potentially explosive environments. All tools are forget after casting to achieve the best quality in the market.
Caution!
These tools are not classified as anti-static because they do conduct electricity. Do not use high copper content tools (>65%) in direct contact with acetylene due to the possible formation of explosive acetylide, specially in the presence of moisture.
| Al-Cu | Be-Cu | ||||||
| Code |
S |
L |
WT g |
Code |
S |
L |
WT g |
| 17004001 | 8 | 95 | 35 | 17104001 | 8 | 95 | 40 |
| 17004002 | 10 | 105 | 45 | 17104002 | 10 | 105 | 50 |
| 17004003 | 12 | 125 | 60 | 17104003 | 12 | 125 | 65 |
| 17004004 | 14 | 140 | 85 | 17104004 | 14 | 140 | 95 |
| 17004005 | 17 | 160 | 95 | 17104005 | 17 | 160 | 105 |
| 17004006 | 19 | 170 | 115 | 17104006 | 19 | 170 | 130 |
| 17004007 | 22 | 195 | 152 | 17104007 | 22 | 195 | 170 |
| 17004008 | 24 | 220 | 170 | 17104008 | 24 | 220 | 190 |
| 17004009 | 27 | 240 | 260 | 17104009 | 27 | 240 | 285 |
| 17004010 | 30 | 260 | 290 | 17104010 | 30 | 260 | 320 |
| 17004011 | 32 | 275 | 365 | 17104011 | 32 | 275 | 400 |
| 17004012 | 34 | 290 | 410 | 17104012 | 34 | 290 | 455 |
| 17004013 | 36 | 310 | 480 | 17104013 | 36 | 310 | 530 |
| 17004014 | 41 | 345 | 555 | 17104014 | 41 | 345 | 615 |
| 17004015 | 46 | 375 | 860 | 17104015 | 46 | 375 | 950 |
| 17004016 | 50 | 410 | 950 | 17104016 | 50 | 410 | 1080 |
| 17004017 | 55 | 450 | 1200 | 17104017 | 55 | 450 | 1380 |
| 17004018 | 60 | 490 | 1700 | 17104018 | 60 | 490 | 1950 |
| 17004019 | 65 | 530 | 2000 | 17104019 | 65 | 530 | 2250 |
| 17004020 | 70 | 570 | 2550 | 17104020 | 70 | 570 | 2850 |
| 17004021 | 75 | 610 | 2800 | 17104021 | 75 | 610 | 3200 |
