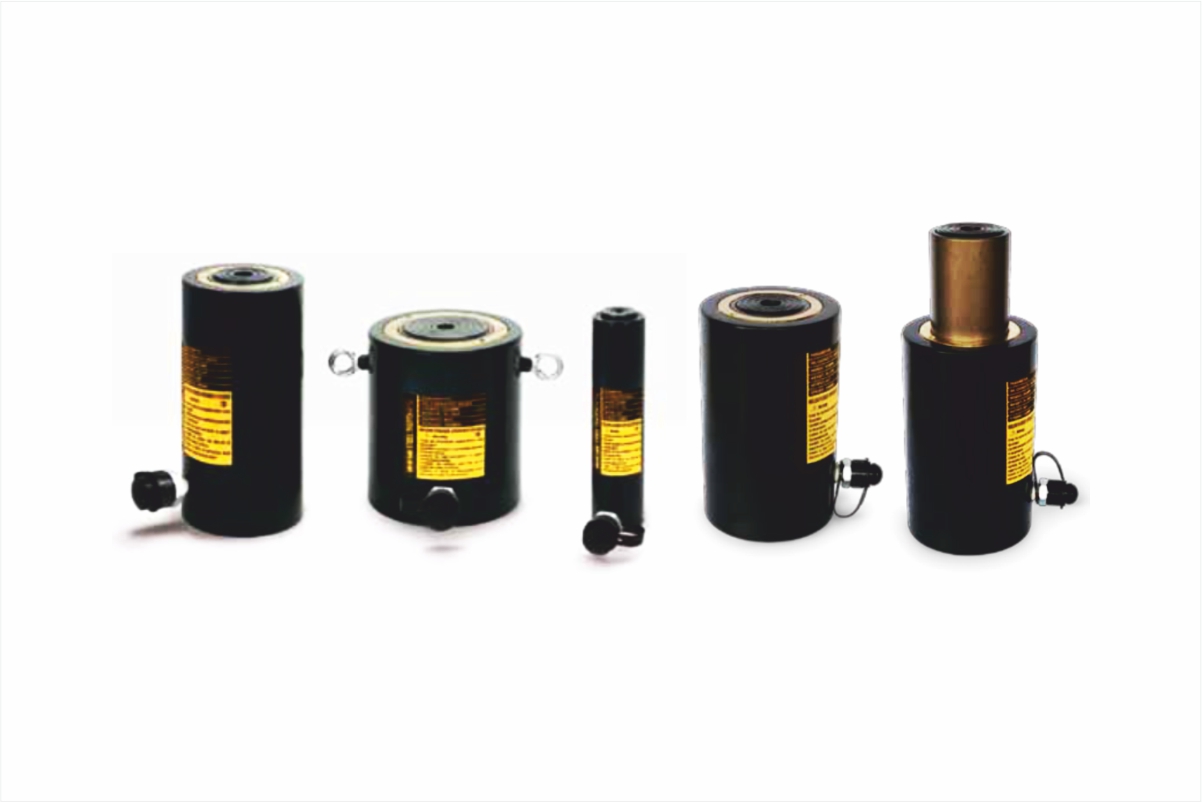

Lightweight for maxium portability. Hard-coat finish on all surfaces resists damage and extends cylinder lift. Single acting, spring return. Each cylinder has an GR-II 3/8”NPT male half coupler and dust cap. Each cylinder has a flat grooved saddle. Tilt saddle is available on request.
Working pressure: 700bar.
| Code | Model | Cylinder capacity |
Stroke mm. |
Effective area sm² |
Oil capacity sm² |
Closed height mm |
Extended height mm |
Ø Outside dia. | Øinside mm |
ØPiston rod mm |
Saddle size mm |
Gross weight kg |
Handle | Recommended pump | |||

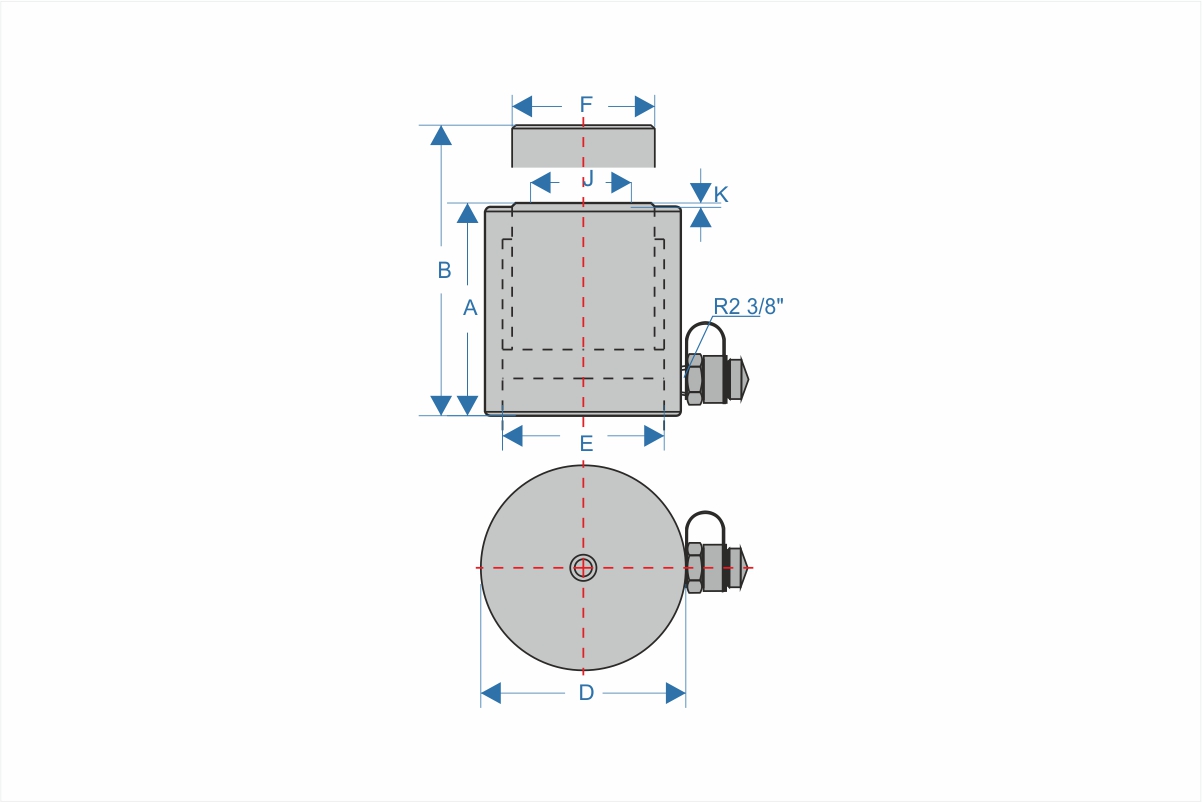

| Ton | KN | A | B | D | E | F | G | K | L | ||||||||
| 22501154 | GRYG-1050L | 10 | 111 | 50 | 15,9 | 85 | 142 | 192 | 60 | 45 | 45 | 30 | 14 | 15 | 1,2 | No | GRB-700C |
| 22501155 | GRYG-10100L | 100 | 169 | 192 | 292 | 1,7 | |||||||||||
| 22501156 | GRYG-10150L | 150 | 254 | 242 | 392 | 2,1 | |||||||||||
| 22501157 | GRYG-2050L | 20 | 198 | 50 | 28,3 | 157 | 162 | 212 | 85 | 60 | 60 | 41 | 16 | 18 | 3 | ||
| 22501158 | GRYG-20100L | 100 | 311 | 212 | 312 | 3,8 | GRB-700 | ||||||||||
| 22501159 | GRYG-150L | 150 | 465 | 262 | 412 | 4,6 | |||||||||||
| 22501160 | GRYG-3050L | 30 | 309 | 50 | 44,2 | 240 | 172 | 222 | 110 | 75 | 75 | 49 | 5,1 | GRB-700C | |||
| 22501161 | GRYG-30100L | 100 | 474 | 222 | 322 | 6,4 | GRB-700 | ||||||||||
| 22501162 | GRYG-30150 | 150 | 707 | 272 | 422 | 7,6 | GRB-700А | ||||||||||
| 22501163 | GRYG-5050L | 50 | 496 | 50 | 70,8 | 391 | 182 | 232 | 140 | 95 | 95 | 67 | 18 | 20 | 8,6 | GRB-700 | |
| 22501164 | GRYG-50100L | 100 | 770 | 323 | 332 | 10,5 | GRB-700А | ||||||||||
| 22501165 | GRYG-50150L | 150 | 1149 | 282 | 432 | 12,5 | |||||||||||
| 22501166 | GRYG-10050L | 100 | 1002 | 50 | 143,1 | 783 | 208 | 258 | 180 | 135 | 135 | 99 | 18 | 17 | |||
| 22501167 | GRYG-100100L | 100 | 1534 | 258 | 358 | 20,5 | Eye bolts |
||||||||||
| 22501168 | GRYG-100150 | 150 | 2285 | 308 | 458 | 23,3 | |||||||||||
| 22501169 | GRYG-15050L | 150 | 1496 | 50 | 213,7 | 1136 | 233 | 283 | 280 | 165 | 165 | 114 | 21 | 30,9 | |||
| 22501170 | GRYG-150100L | 100 | 2241 | 283 | 383 | 35,9 | |||||||||||
| 22501171 | GRYG-150150L | 150 | 3345 | 333 | 483 | 40,9 | GRB-630А | ||||||||||
| 22501172 | GRYG-20050L | 200 | 1984 | 50 | 283.4 | 1485 | 263 | 313 | 270 | 190 | 190 | 139 | 22 | 20 | 47,5 | GRB-700А | |
| 22501173 | GRYG-200100L | 100 | 2938 | 313 | 413 | 51,6 | GRB-630А | ||||||||||
| 22501174 | GRYG-200150L | 150 | 4391 | 363 | 513 | 61,2 | |||||||||||
| 22501175 | GRYG-200200L | 200 | 5844 | 413 | 613 | 68 | |||||||||||
| 22501176 | GRYG-200250L | 250 | 7897 | 463 | 713 | 74,8 | |||||||||||
See pages 161-164 recommended pump hydraulic pumps
