Square drive hydraulic torque wrench

Constantly repeated accuracy ±3% across the full stroke. 360°×180° multi-positional swivel quick release couplings.
Easy replaceable square and hexagon drive adapters. Body shroud engraved with torque pressure chart. Suitable for
continuous operation at maximum pressure. High resistance with aluminium-titanium and light body. 360° adjustable
reaction arm with safety lock feature.

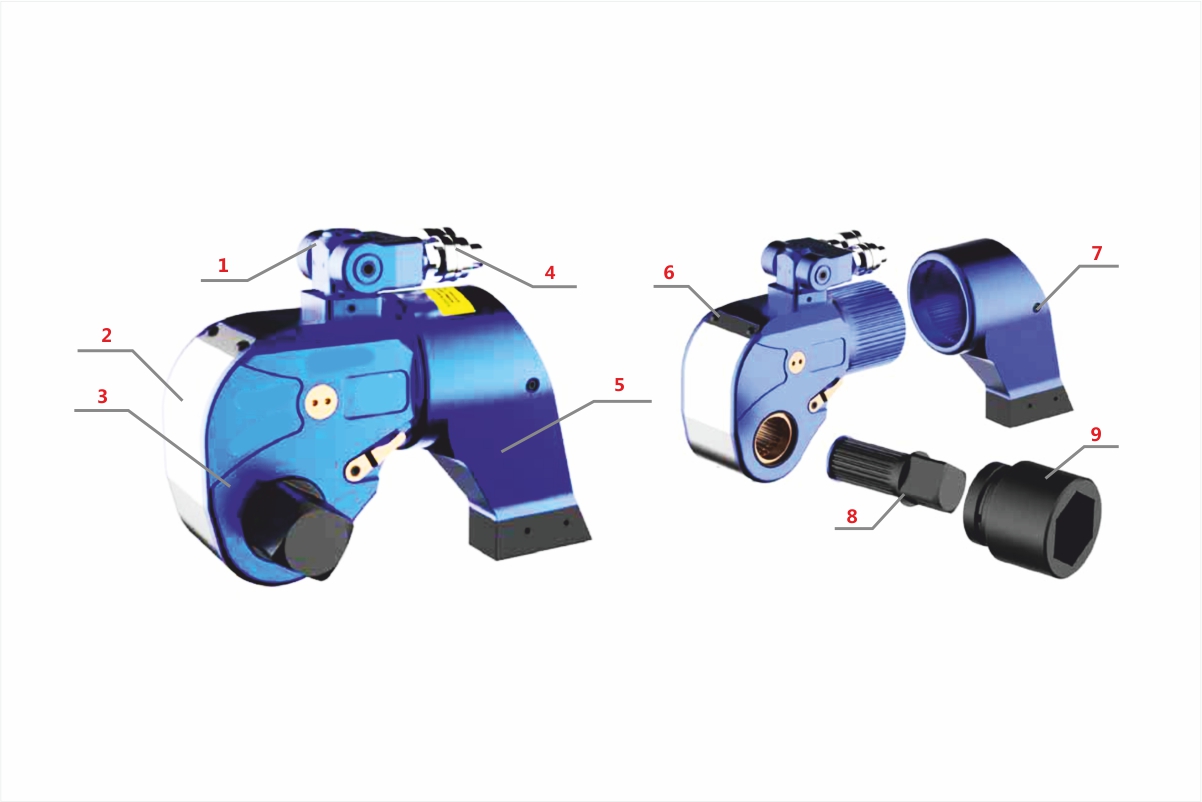

1. The 360*180 degree swivel is free to operation with no space
    limitation.
2. Laser with the pressure-torque table enables convenient operation.
3. Compact design with the raw material of advanced aluminum-
    titanium alloy, which intensifies the strength and toughness of the
    fuselage comprehensively.
4. The new locking coupler ensures the oil keep free access.
5. The reaction arm with 360° degree trimming style allows placing
    in any support point.
6. Drive unit.
7. Reaction arm.
8. Square drive adaptor.
9. Hexagon socket (optional).

Max working pressure: 700 bar
Aluminum-titanium alloy material, compact structure.
Conventional high power torque wrench.
