700 bar maximum operation pressure. Repeatability ±3% 4 different models from 230 Nm to 18,500 Nm. Designed for tighten and loosen high torque applications. 360°×180° uni swivel quick release couplings. Maximum torque power with minimum wall thickness. Various cassettes, adaptors and reducers are available. Durable structure, aluminium-titanium alloy and light body. Suitable for continuous operations at maximum pressure. Pressure relief valve prevents over pressure.

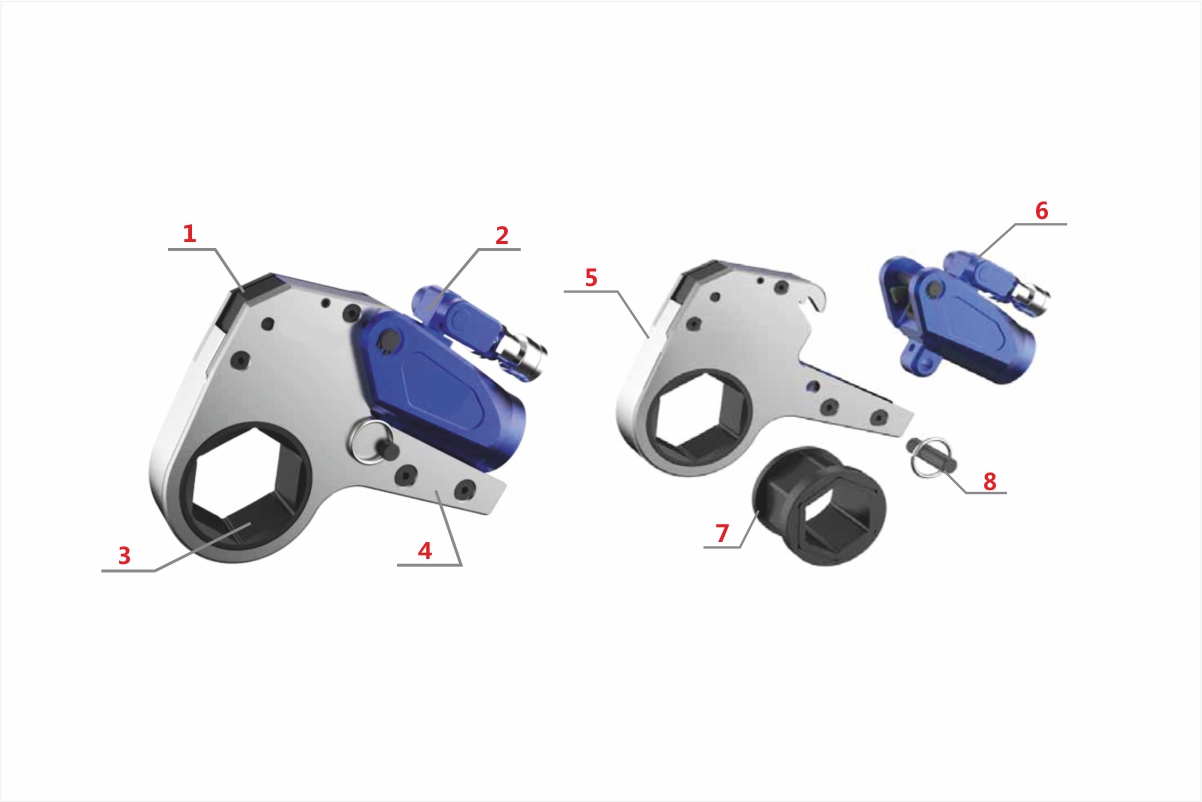

1. The reaction pawl officially overcome the possibility of ratchet
reversing opposite, enhance the efficiency and precision of torque.
2. 360*180 degree swivel or 360*360 degree swivel allow the wrench
free to operation with no space limitation.
3. More accuracy and easier when the wrench direct operate on
the nuts.
4. Compact design with longer arm fully advances the reliability.
5. Hexagonal Cassette.
6. Drive unit (one drive unit accepts various cassettes).
7. Reducer insert (optional).
8. Lock pin.
Low profile design fit in restricted access areas.Drive Unit made of aluminum-titanium alloy. Replaceable hexagon cassette.
| Code | Model | Torque |
Hexagon nut A/F |
Weight of |
Weight of |

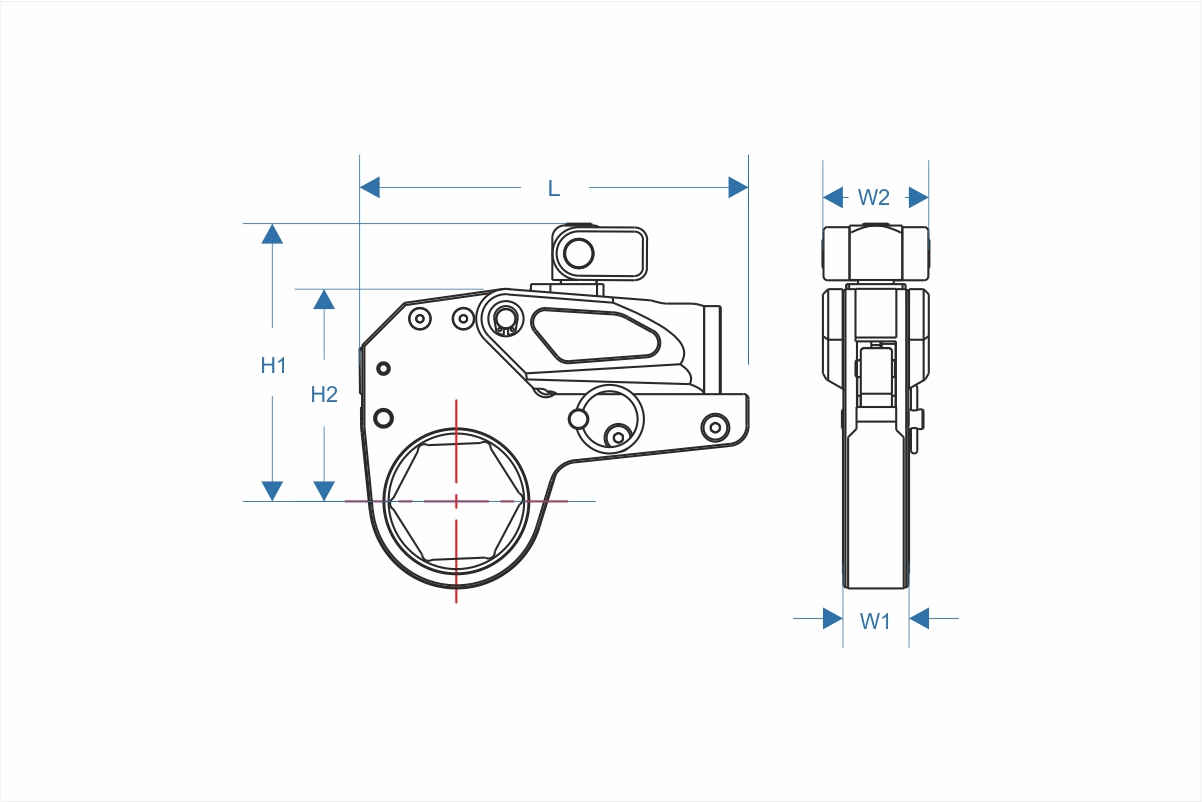

Dimensions mm. |
|||||
| Min | Max | L1 | H1 | H2 | W1 | W2 | |||||
| 22501213 | GRBS-K2 | 232 | 2328 | 19～55 | 1 | 1,6 | 196,4 | 125,9 | 102,3 | 32 | 51 |
| 241 | 2414 | 60 | 1,7 | 196,4 | 128,5 | 105 | |||||
| 22501214 | GRBS-K4 | 585 | 5858 | 34～65 | 2 | 4,4 | 245 | 177 | 135,7 | 42 | 66 |
| 647 | 6474 | 70～80 | 4,6 | 246 | 187 | 145,7 | |||||
| 22501215 | GRBS-K8 | 1094 | 10941 | 41～95 | 3,3 | 8 | 300 | 207 | 169 | 53 | 83 |
| 1177 | 11774 | 100～105 | 8,4 | 301 | 216 | 178 | |||||
| 22501216 | GRBS- K14 | 1852 | 18521 | 50～117 | 5,5 | 11,6 | 361 | 239 | 204 | 64 | 99 |
