Features: Robust, durable and compact. Two-speed hydraulic system for fast and easy operation. Lower handle effort to minimize operator fatigue. Large and comfortable release knob for improved control of pressure release. Internal pressure relief valve for overload protection.
Working pressure 700 bar.

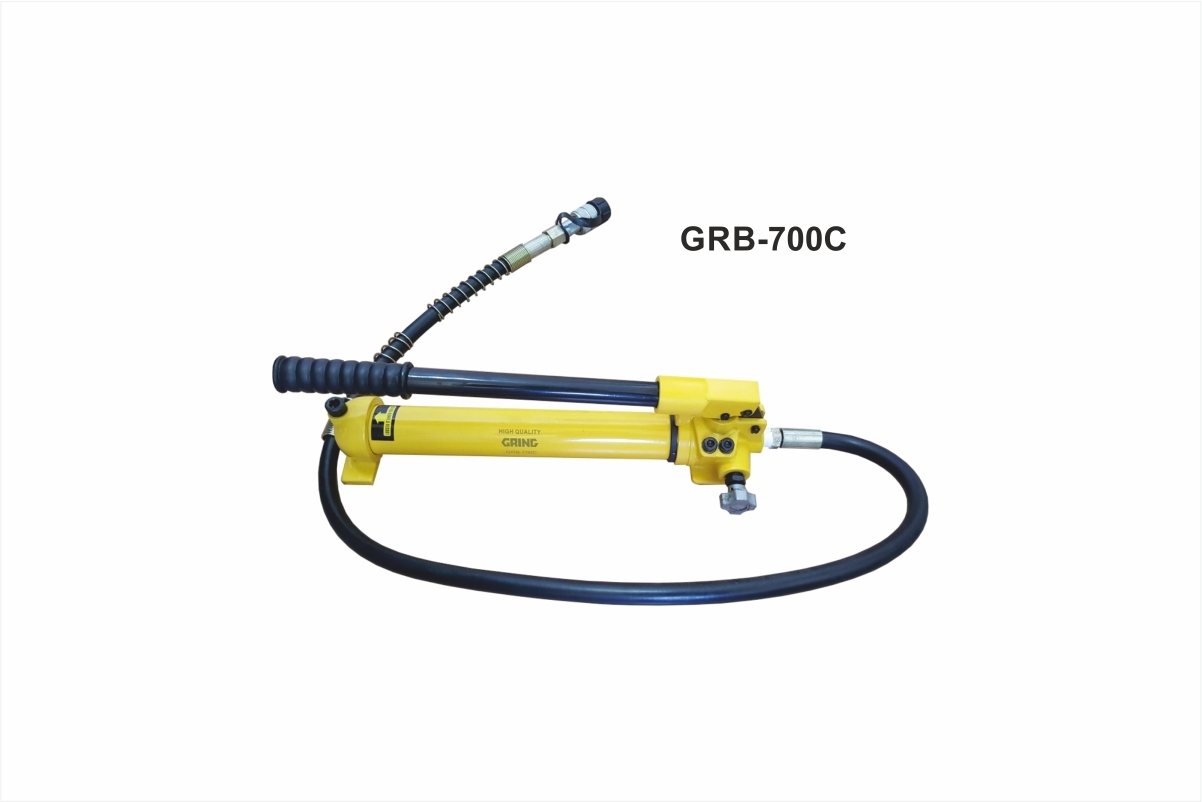

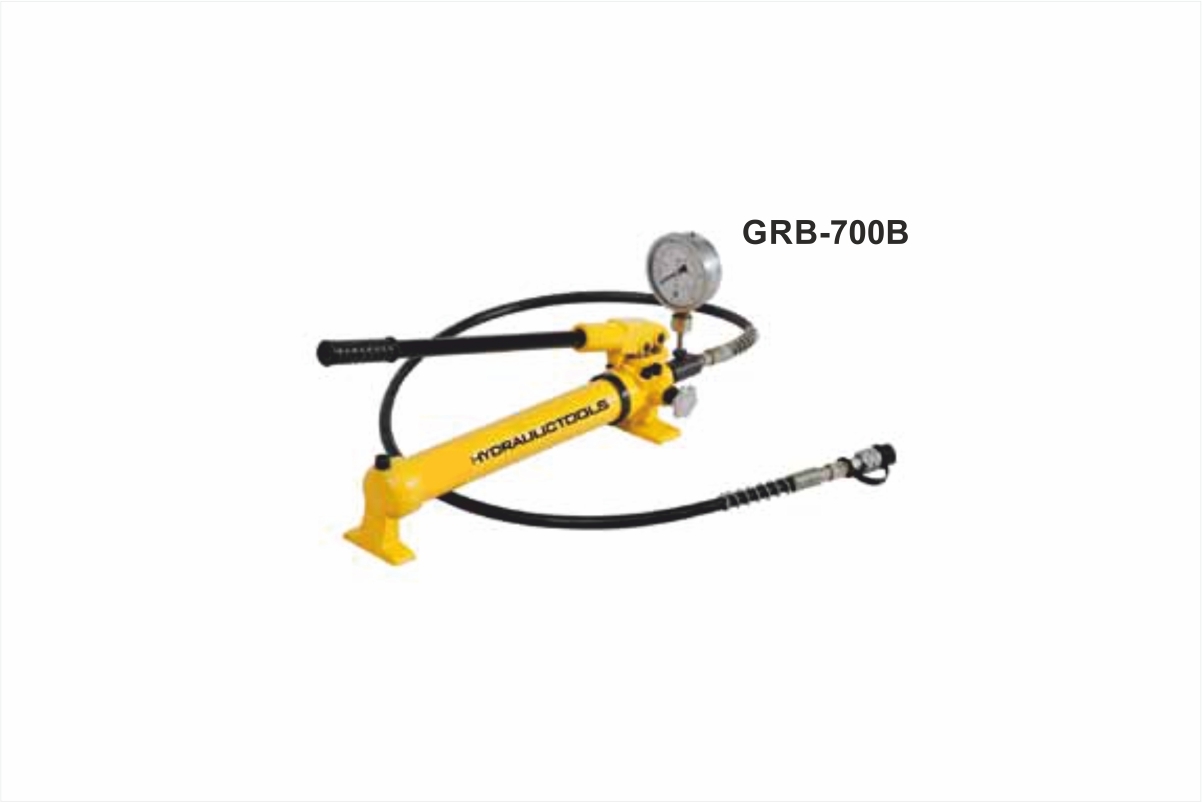

All these pumps are one-way for single-acting applications. GRB-700C is supplied with 1.2-meter length high pressure hose. Other pumps are supplied with 1.8-meter length high pressure hose. GRB-700B is comes with pressure gauge and gauge adaptor.
| Code | Model | Working pressure bar |
Oil displacement per stroke sm³ |
Reservior sm³ |

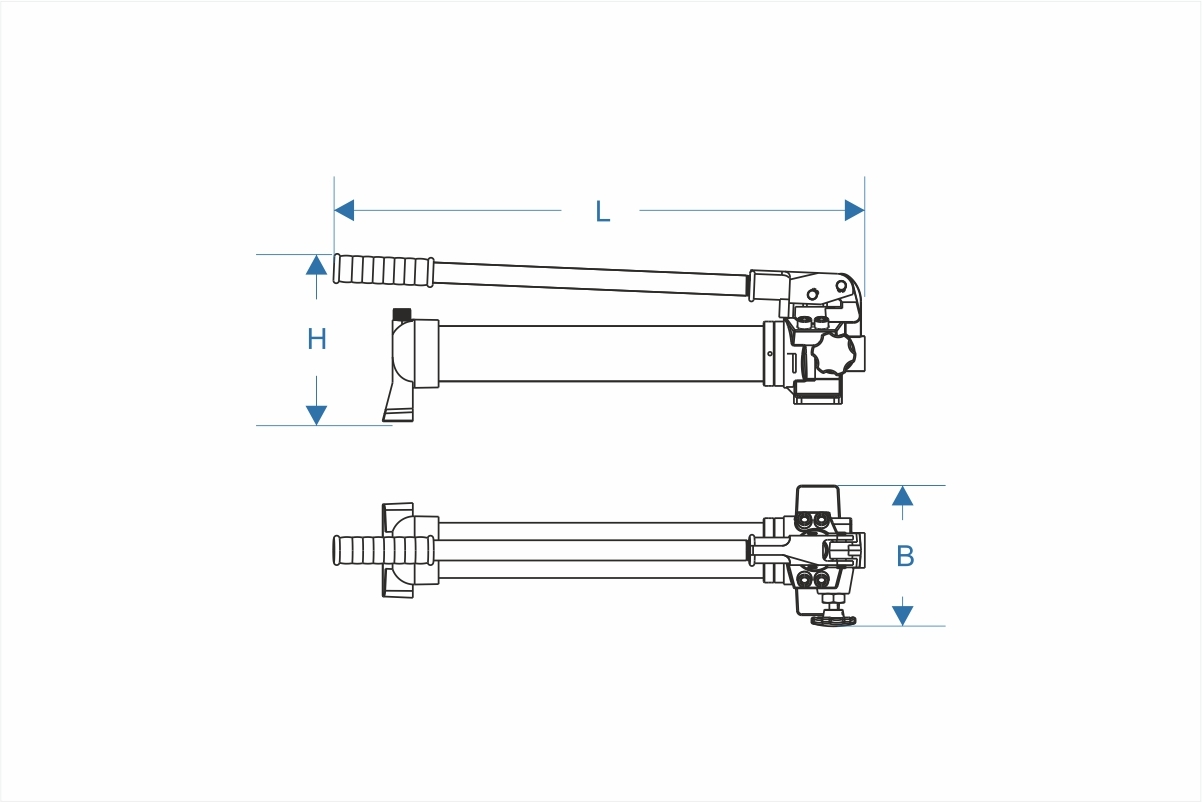

Dimensions mm |
Weight kg |
Packing size mm |
|||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
Oil capacity | Usable oil capacity |
L | B | H | ||||

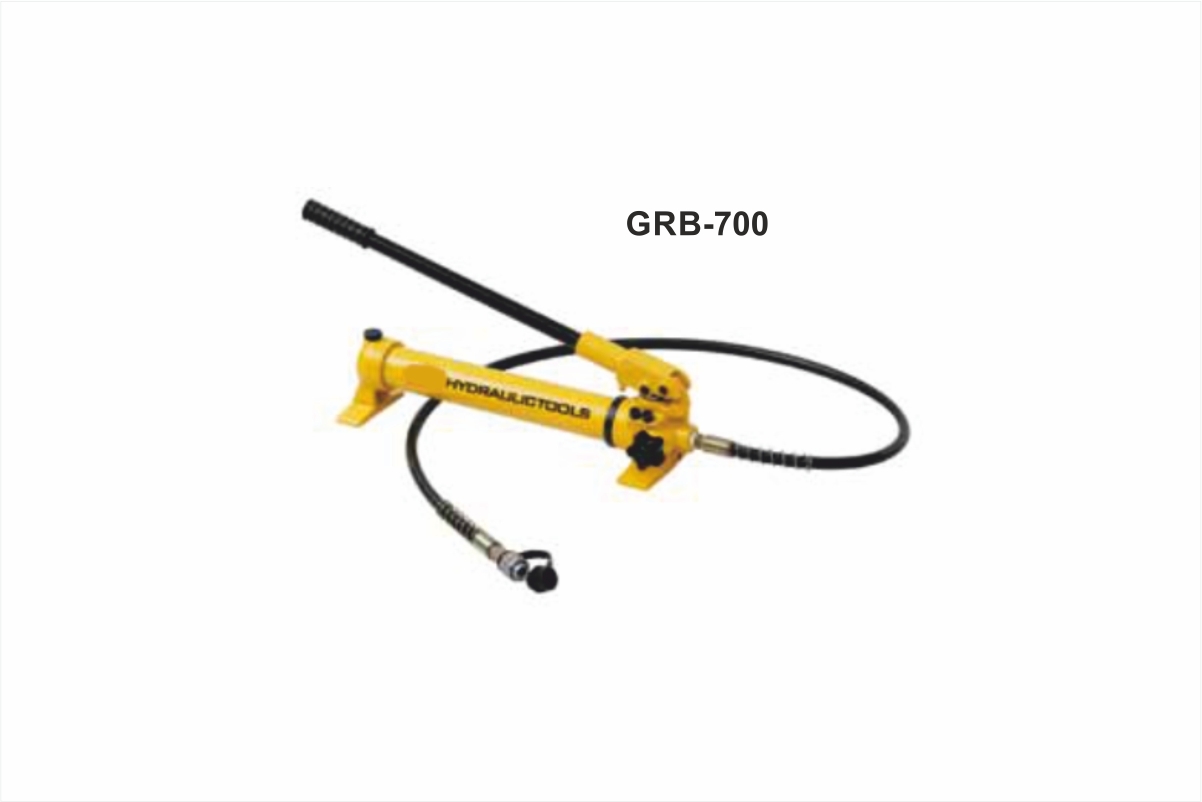

| 22501393 | GRB-700 | 20 | 700 | 13 | 2,3 | 1000 | 700 | 600 | 120 | 200 | 10,6 | 730x190x190 |

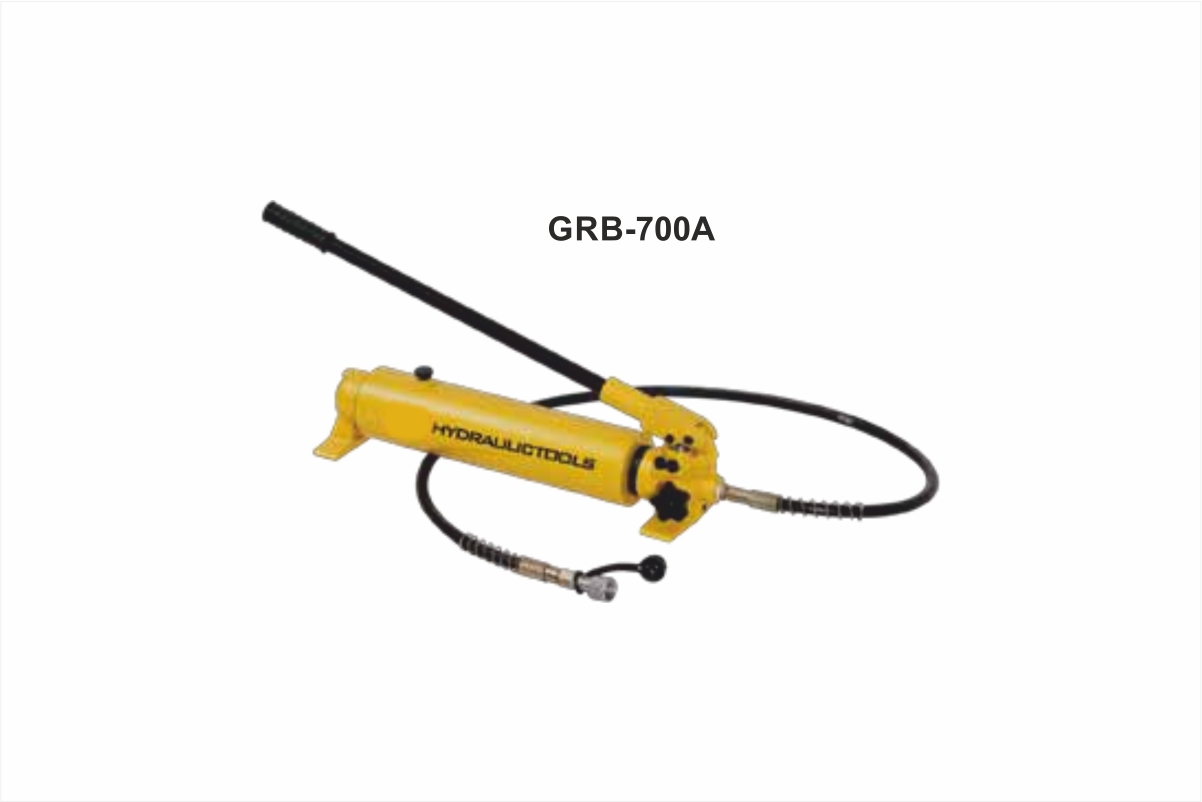

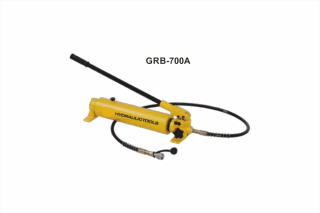

| 22501394 | GRB-700A | 3200 | 2700 | 715 | 200 | 16,8 | 820x180x180 | |||||
| 22501395 | GRB-700B | 1000 | 700 | 600 | 240 | 12,4 | 750x180x270 | |||||
| 22501396 | GRB-700C | 8 | 1,8 | 600 | 350 | 380 | 140 | 5,6 | 600x160x170 | |||
