Features:
6.5HP/5.5HP Briggs & Stratton engine. Manual control valve. High-
pressure safety relief valve. Protective roll cage for use in tough enviroment. For use with either single or double acting tools.
| Code | Model | Working pressure bar. |
Oil displacement per stroke sm³ |
Power rating (kw) |
Usable oil capacity l |

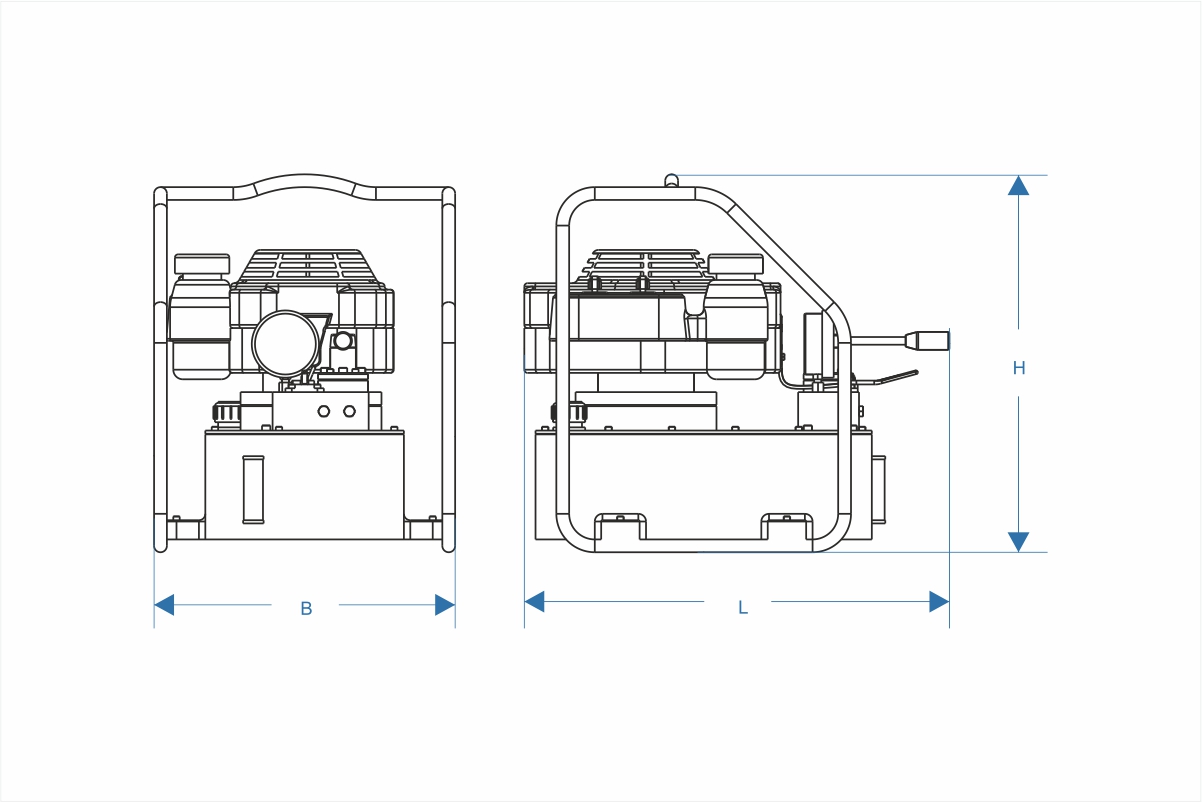

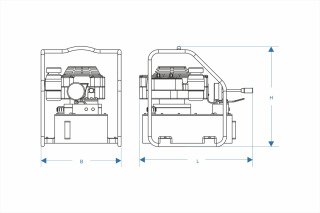

Dimensions mm. |
Weight kg. |
Packing size mm |
||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
L | B | H | ||||||

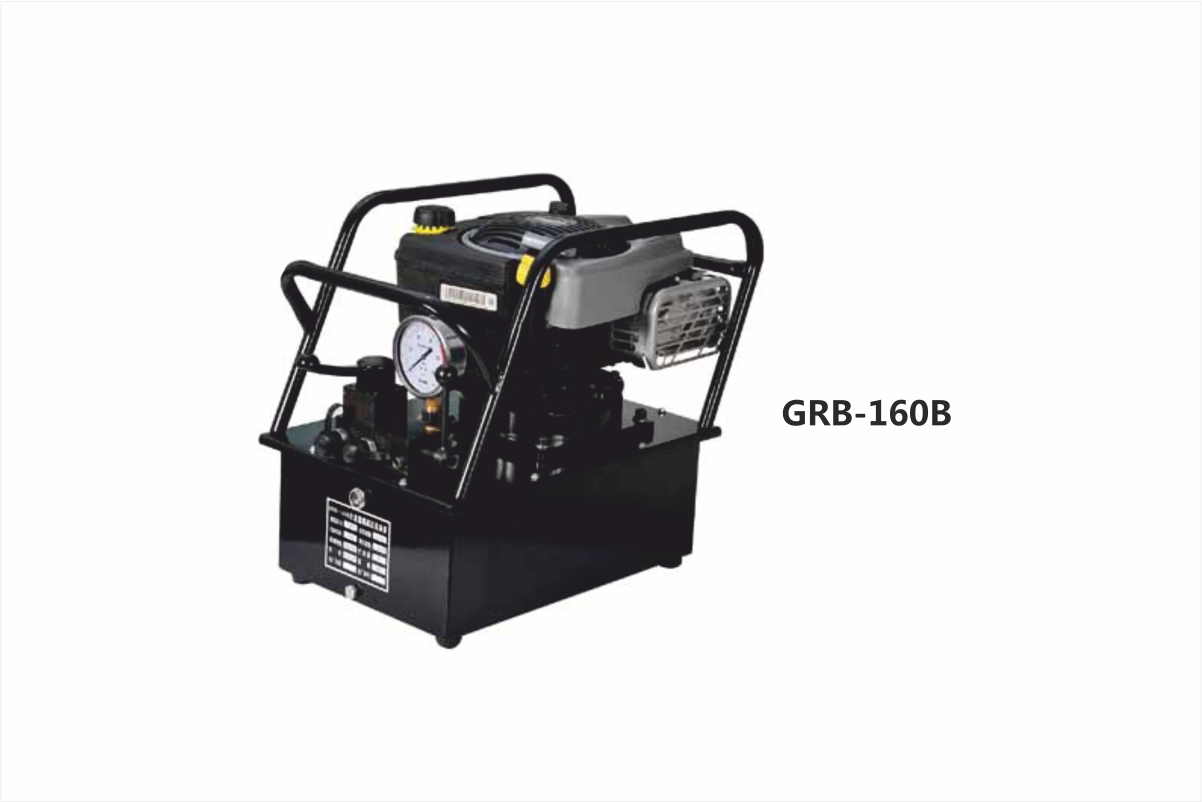

| 22501410 | GRB-160B | 20 | 700 | 6 | 1,2 | 6,5 | 25 | 620 | 360 | 500 | 48,5 | 630x440x620 |
| 22501411 | GRB-850B | 0,9 | 5,5 | 15 | 580 | 480 | 48,2 | |||||
