Features:
Robust, durable and compaction. Handle lock for easy transport. Two-speed o hydraulic system for fast and easy operation. Reduced handle effort and ergonomic grip. Large oil capacities to power a wide range of cylinders or tools. Internal pressure relief valve for overload protection.
Working pressure 700 bar.

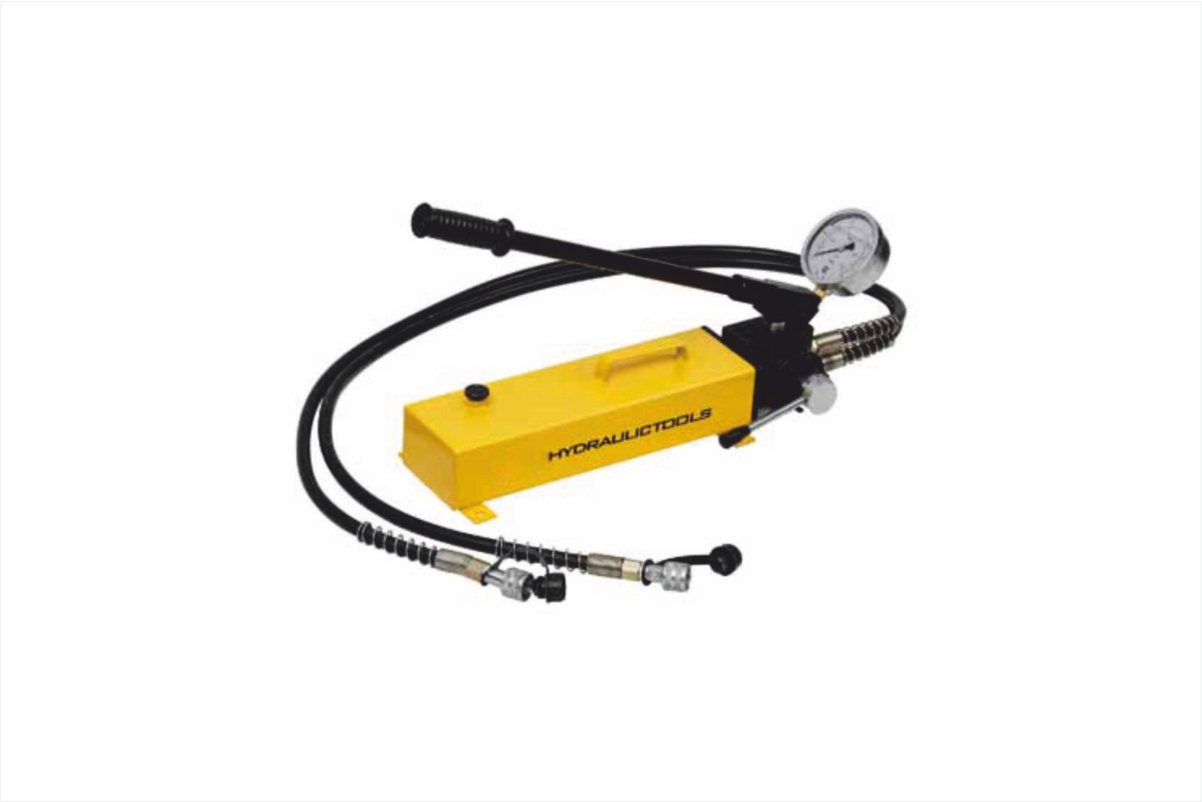

Square and large oil tank. GRB-700S is two-way pump for double-acting hydraulic applications.
| Code | Model | Pump type |
Working pressure bar |
Oil displacement per stroke sm³ |
Reservior sm³ |

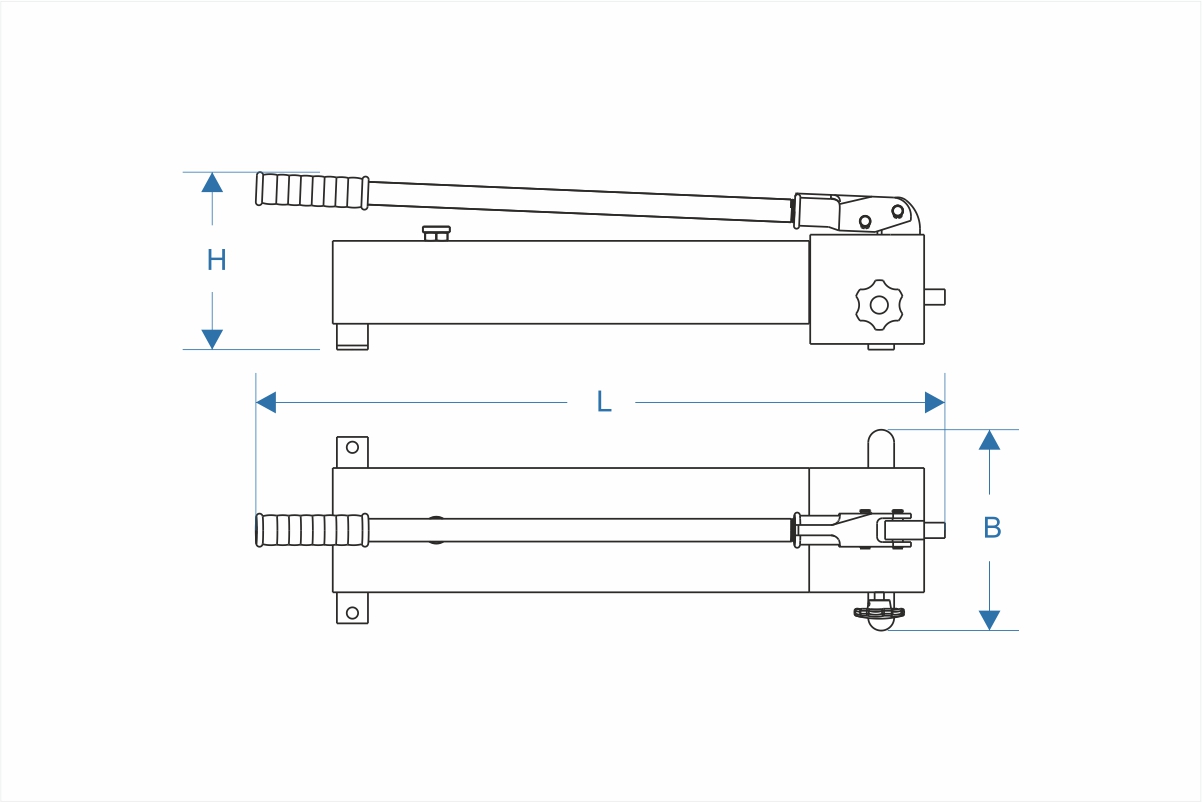

Dimensions mm |
Weight kg. |
Packing size mm |
|||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
Oil capacity |
Usable oil capacity |
L | B | H | |||||
| 22501413 | GRB-700S | two-way. | 20 | 700 | 13 | 2,3 | 2500 | 2000 | 710 | 150 | 210 | 18,6 | 790x240x270 |
