Features: Lightweight, robust, durable and compact. Two-speed hydraulic system for fast and easy operation. Reduced handle effort and ergonomic grip for less operator fatigue. Handle lock and lightweight construction for easy carrying. Large and comfortable release knob for improved control of pressure release. Internal pressure relief valve for overload protection. Large oil capacities to power a wide range of cylinders or tools.
| Code | Model | Working pressure bar |
Oil displacement per stroke sm³ |
Reservior sm³ |

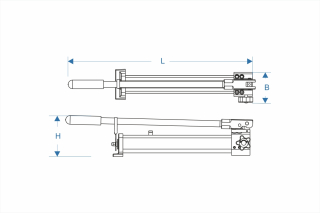

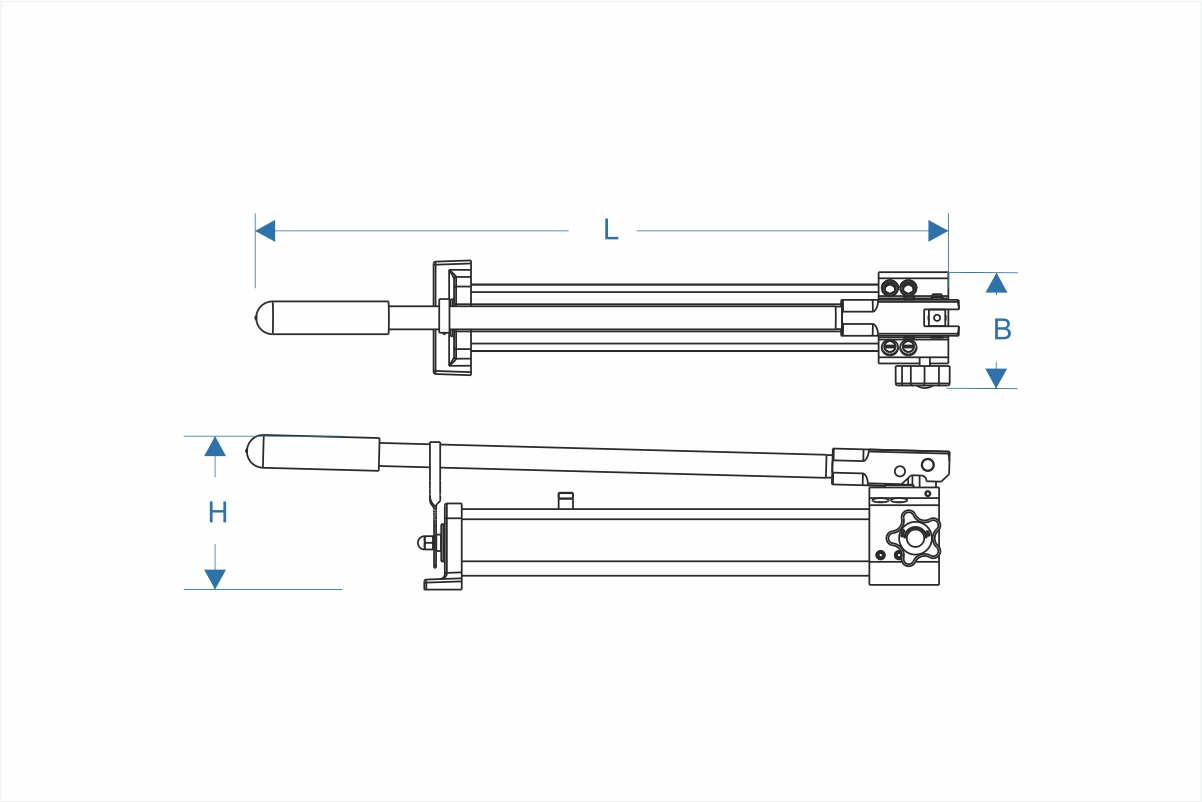

Dimensions mm |
Weight kg |
Packing size mm |
|||||
| Low pressure stage |
High pressure stage |
Low pressure stage |
High pressure stage |
Oil capacity | Usable oil capacity |
L | B | H | ||||

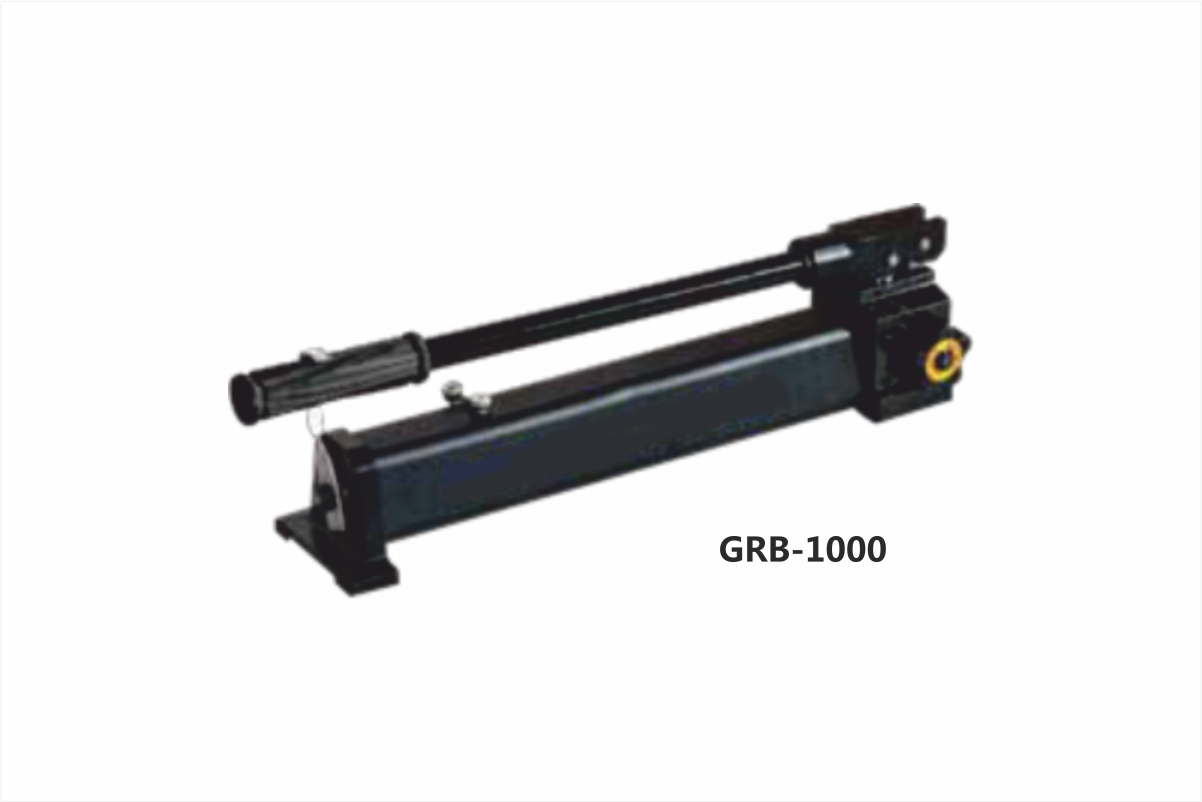

| 22501389 | GRB-1000 | 20 | 700 | 13 | 2,3 | 1300 | 1000 | 550 | 110 | 125 | 6,4 | 730x190x190 |

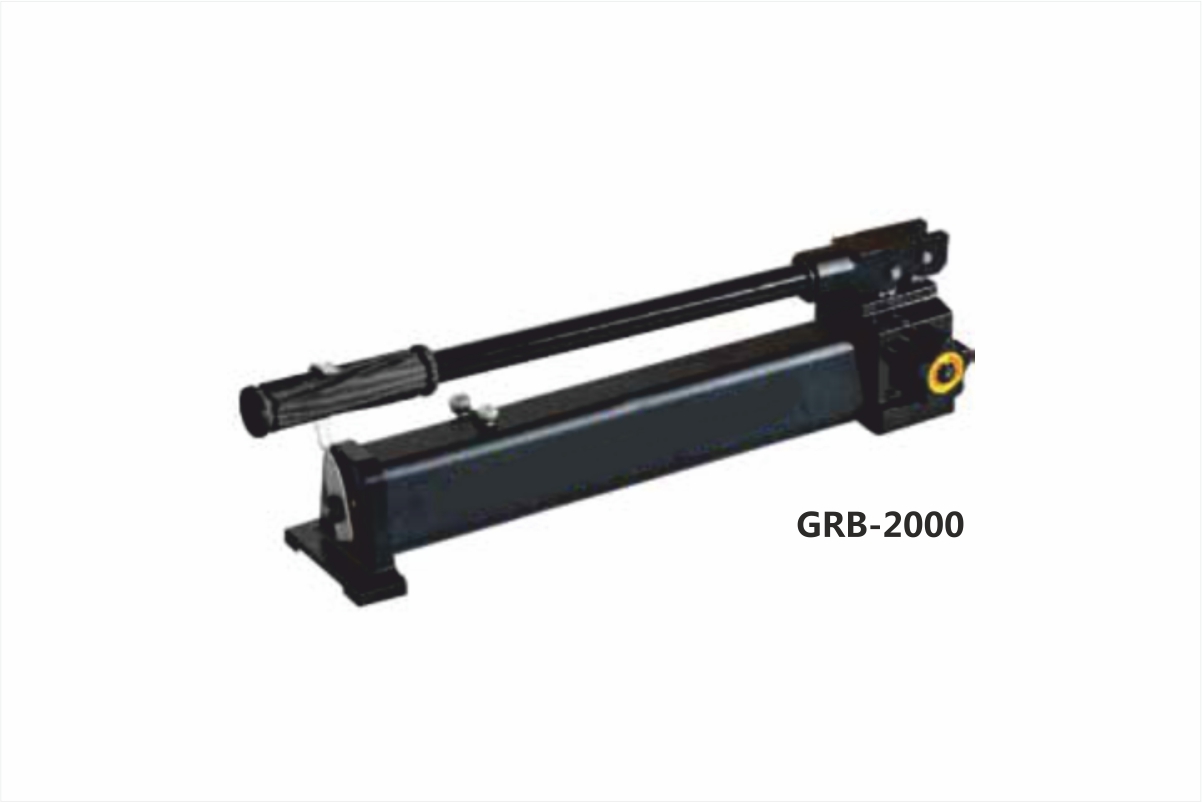

| 22501390 | GRB-2000 | 2500 | 2000 | 130 | 140 | 8,9 | ||||||
