Designed for the electrical contractor and electric utility lineman who is confronted with larger cable diameter and larger connectors.

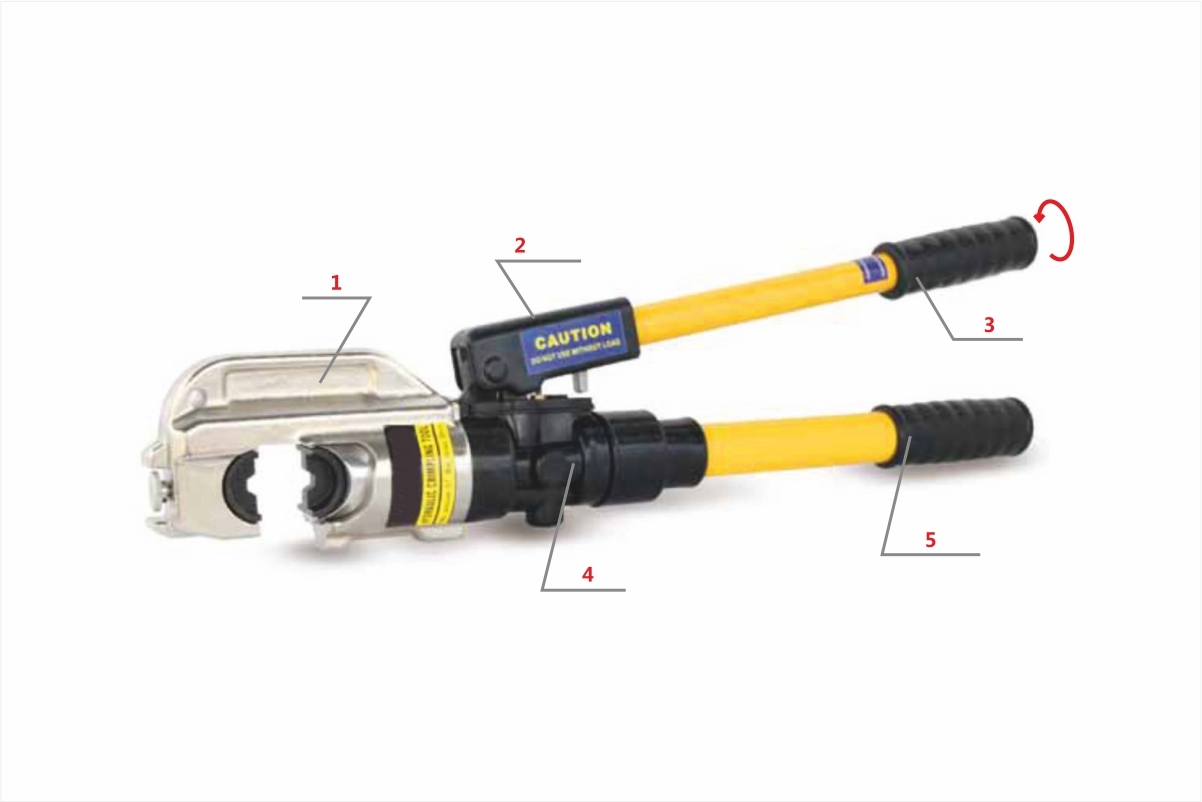

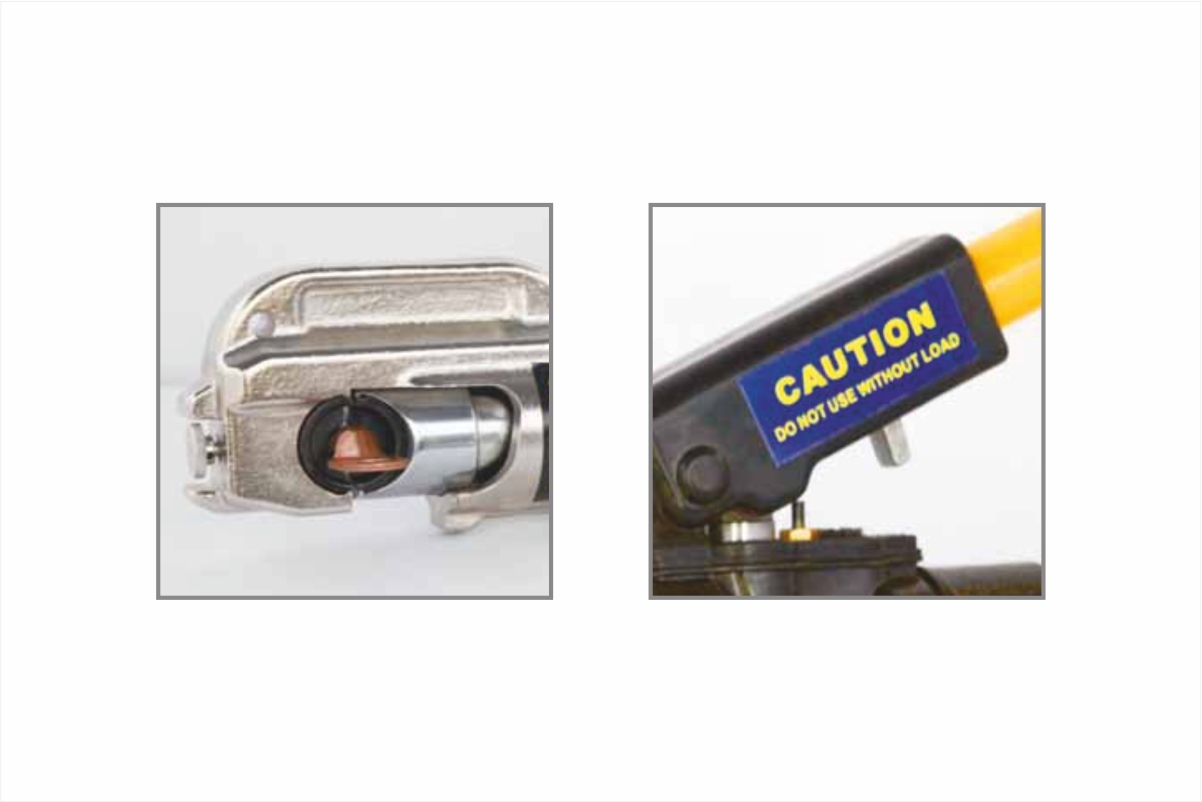

1. Wide open C crimping head, rotatting 180 degree.
2. Built-in pressure relief valve for overload protection.
3. Twist handle pressure release.
4. Insulated rubber sheath.
5. Fiberglass handles.
| Code | Model | Hydraulic ram output Ton |
Ram stroke mm |
Crimping dies mm² |
Crimp pattern | Crimping range mm² |
G.W kg |
Packing size |
| 22501412 | HHY-510 | 11 | 38 | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400. | Hexagonal type | 16-400 | 11,9 | 770х230х130 |
