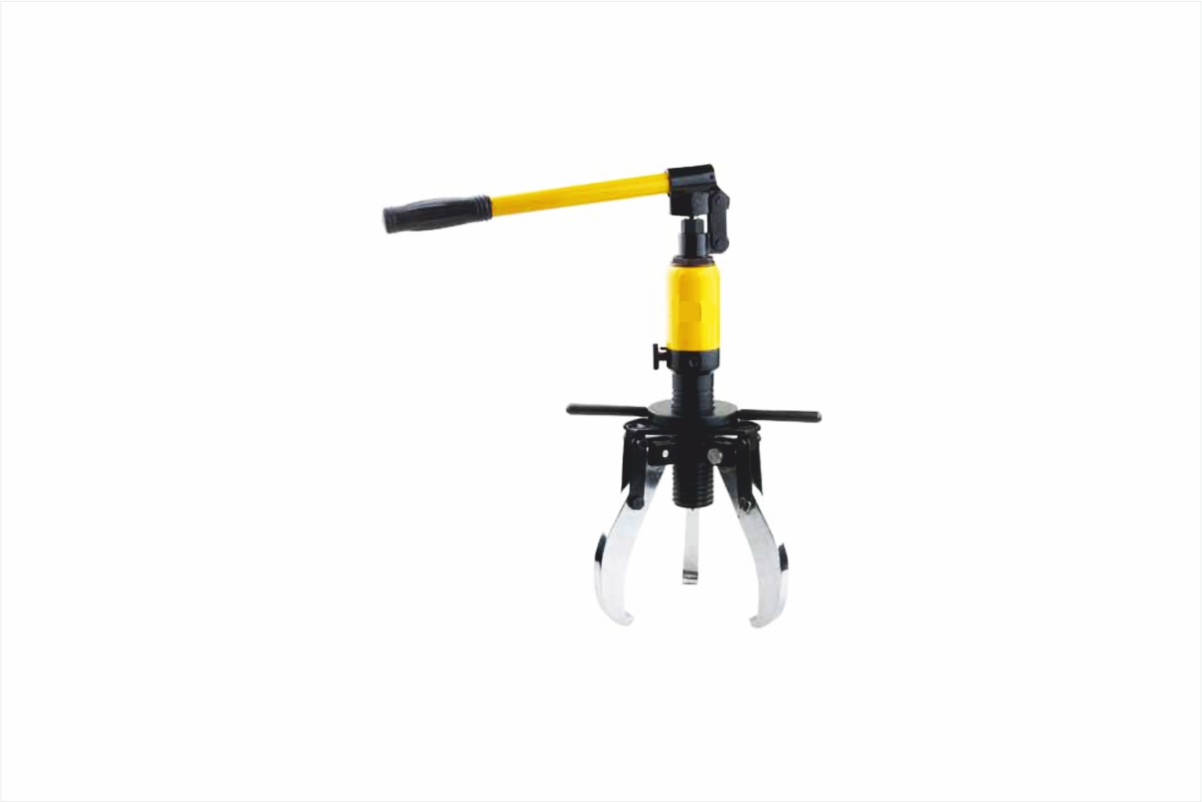

Slim tapered jaws for better gripping in tight spots. Effortless pulling of large components as one man can do the job. High quality, forged steel jaws and crosshead provide superior reliability and service. Because of the safety jaw retention system, the pullers will grip on surfaces where normal pullers would slip off, e.g. tapered bearings.
| Code | Model | Output Ton |
Spread mm |
Max reach mm |
Ram stroke mm |
Dimensions mm |
Weight kg. |
Packing size mm |
|||||

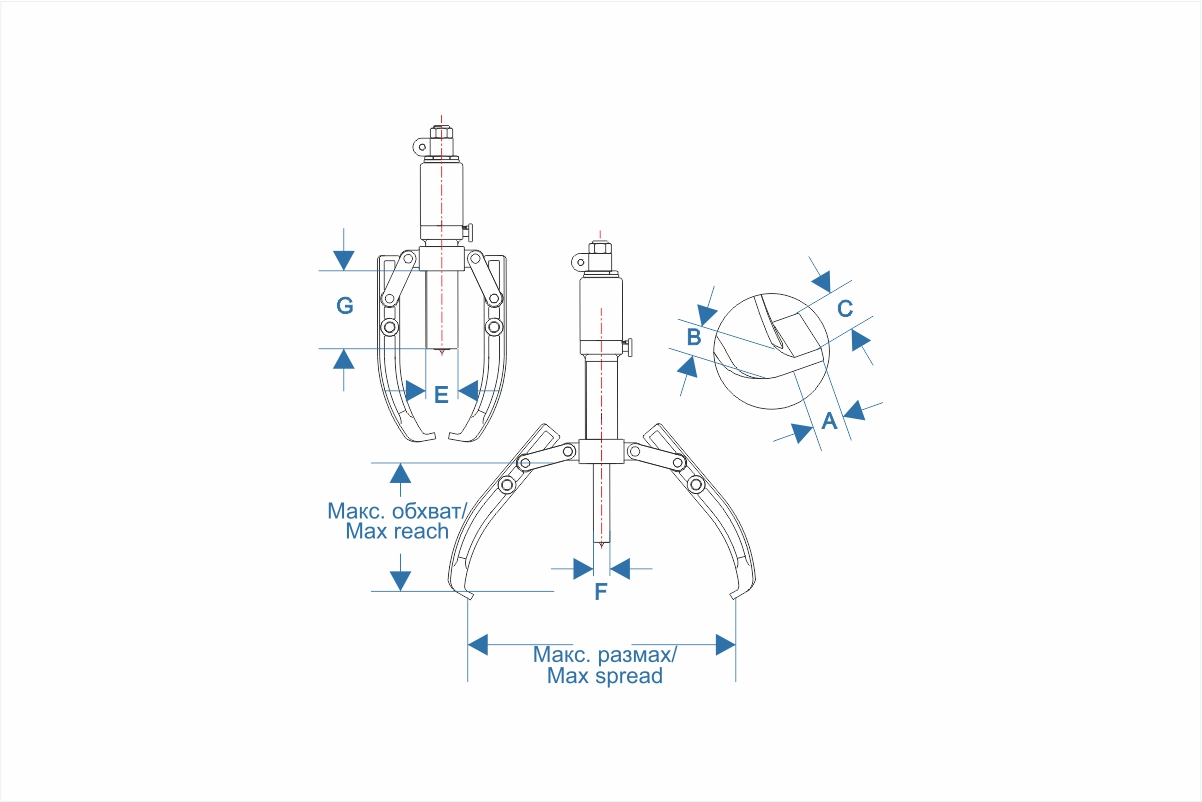

| A | B | C | E | F | G | ||||||||
| 22501386 | GRL-5S | 5 | 50-250 | 140 | 50 | 10 | 10 | 20 | 45 | 12 | 140 | 13,8 | 600х120х170 |
| 22501387 | GRL-10S | 10 | 50-300 | 170 | 60 | 56 | 137 | 15,1 | 570х180х160 | ||||
| 22501388 | GRL-20S | 20 | 100-400 | 205 | 70 | 12 | 12 | 22.5 | 78 | 150 | 20,4 | 620х250х220 | |
