Characteristics:
One universal head to complete crimping, cutting and punching jobs. Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time. 10000 + cycle service life. Ram retracts to original position automatically when operation is complete. Manual retraction in case of need. Audible buzzer and red LED light in case of error. Quick motor stop for higher user safety. Powerful 18V Li-ion battery with low battery warning. Ergonomic 2-component grip area and balanced center of gravity. Sturdy plastic storage box.

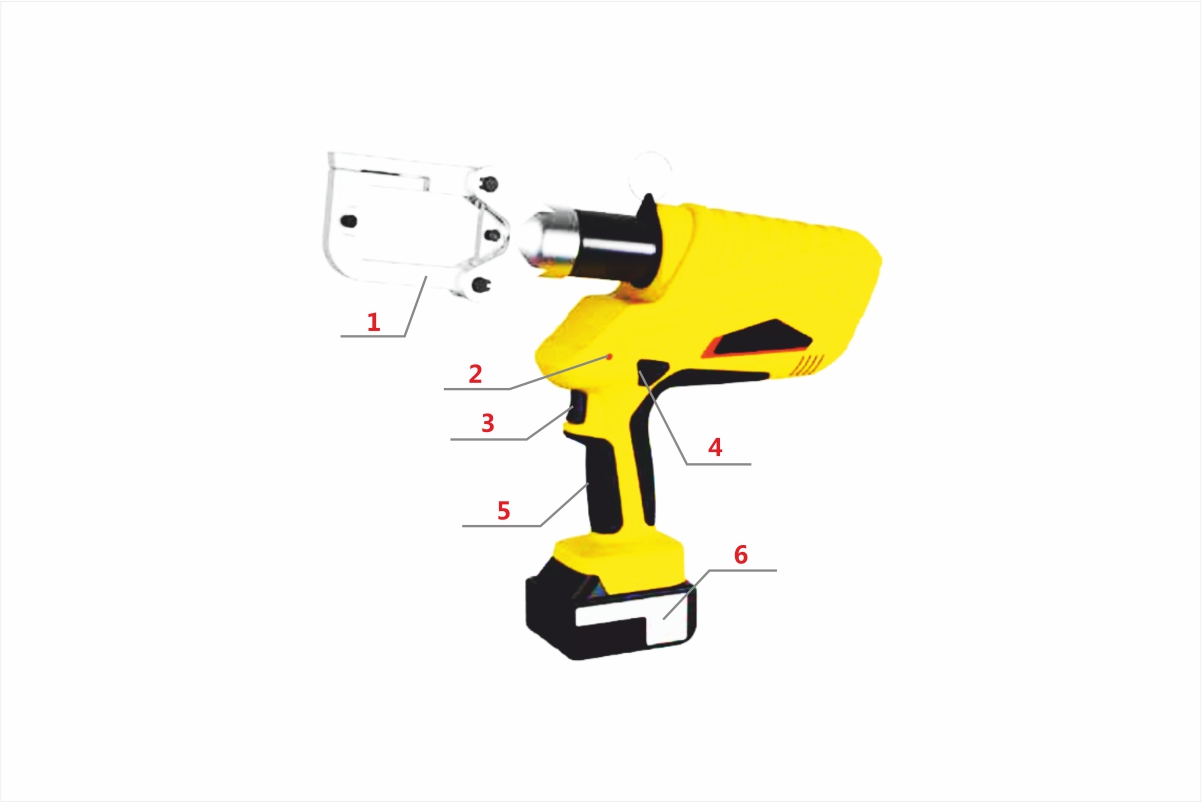

1. Flip-top head, rotating 330°.
2. Audible buzzer and red LED in case of error.
3. One button operation.
4. Manual retraction in case of need.
5. Ergonomic 2-component grip area.
6. High performance 18V Li-Ion battery.

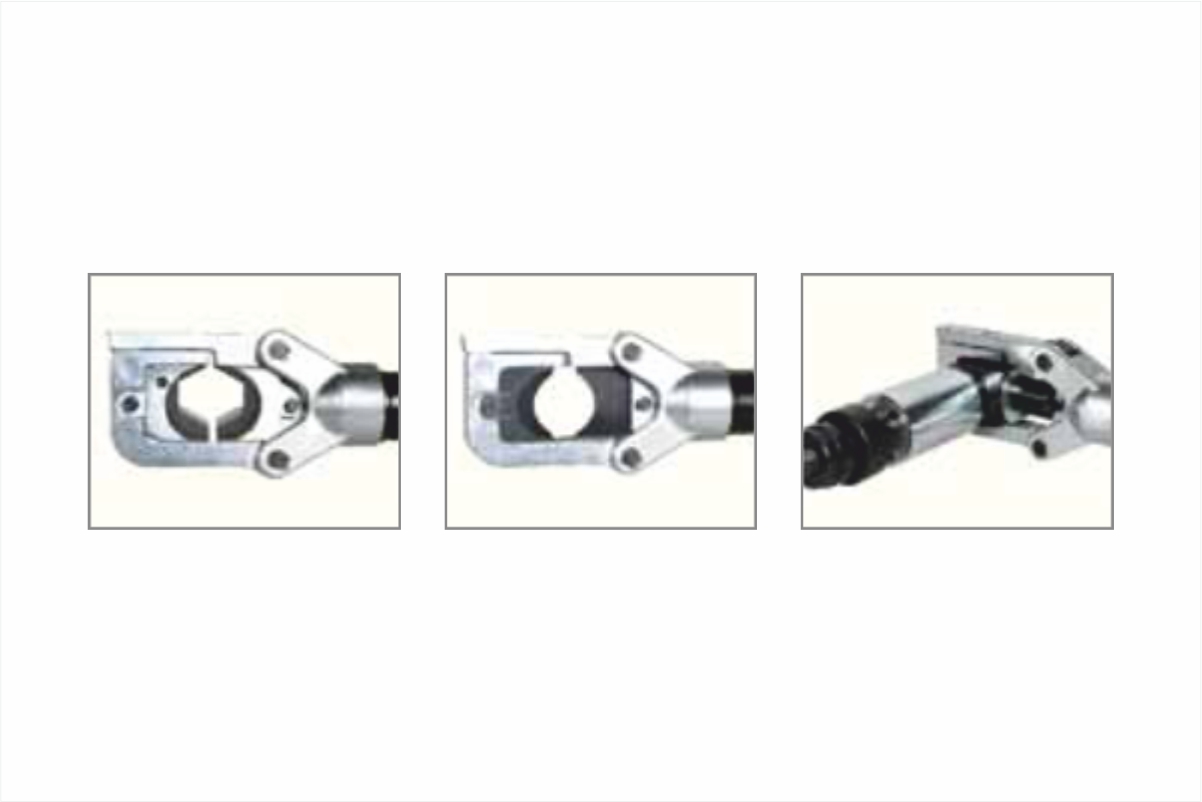

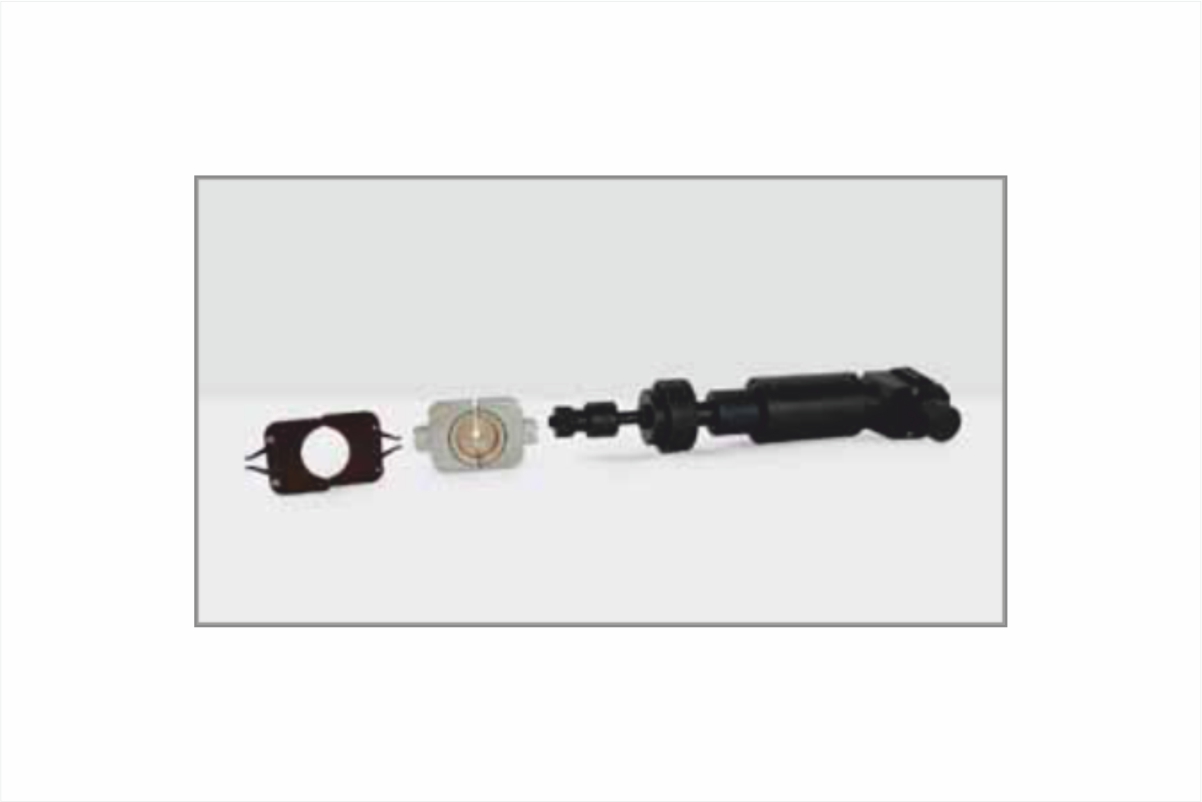

One head for crimping, cutting and punching - one tool for all Lightweight and well-balanced. Interchangeable crimping dies, cutting blades and punching adapter. Only seconds of time is needed to switch crimping, cutting and punching functions.
| Set | Size | Pcs |
| Crimping dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm/mm² | 11 |
| Punching dies | 22, 27, 34, 43, 49, 60 mm. | 6 |
| Battery | 2 | |
| Charger | 1 | |
| Blade | 1 | |
| Adapter for crimping & punching | 1 | |
| Draw stud | M 20x1,5 / M10x1 | 1 |
| Spacer | 1 | |
| Seals for the cylinder & safety valve | 1 |
| Code | Model | Hydraulic Ram output Ton |
Ram stroke |
Battery capacity | Cutting range mm. |
Сrimping range mm². |
Punching range |
Battery | Charging time |
| 22501348 | GRYD-60H | 6 | 42 | cycles: 90 cutting, 190 crimping, 100 punching. |
Ø 40 (Cu/Al and armoured cable) |
16-300 | Ø 22-60 | 18V/4.0Ah Li-ion. | 2 hours |
