Characteristics

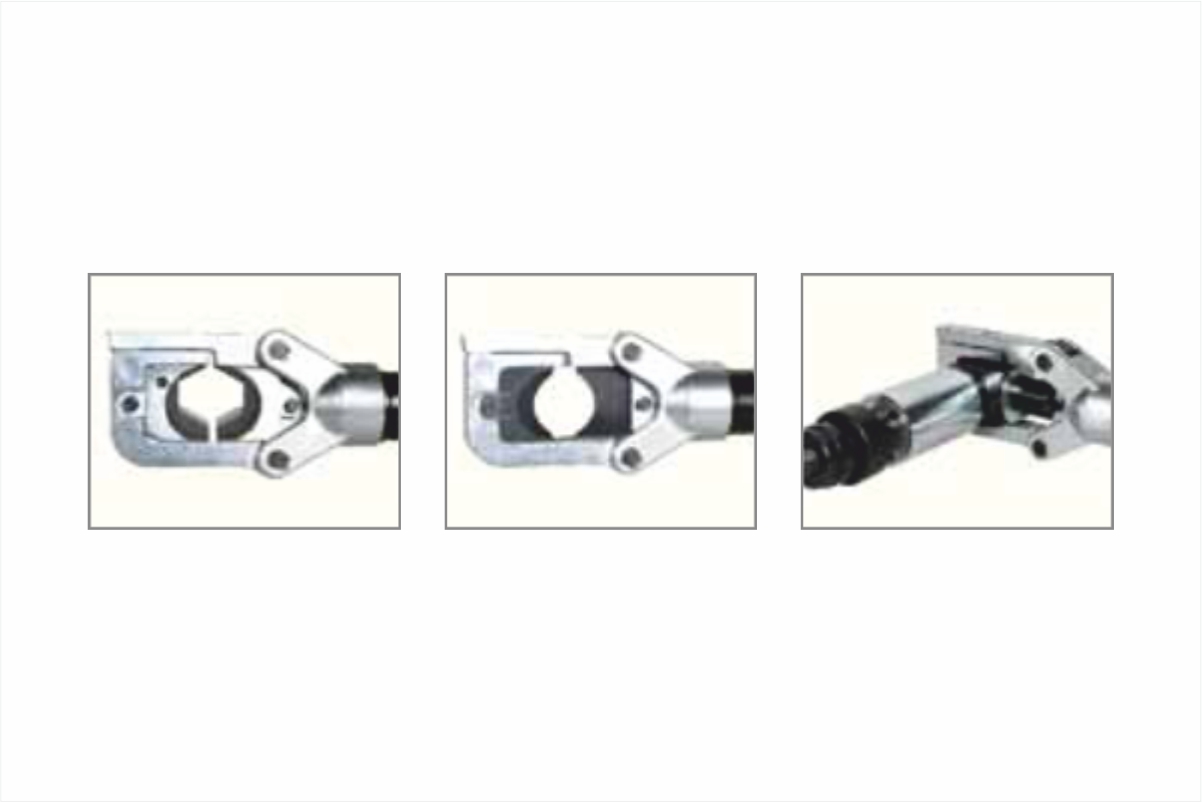

Universal head, flip-top style, rotatable. Light weight due to high quality aluminum housing. Thanks to the automatic retraction function, poor crimps are avoided, more safety and shorter intervals between crimping operations. Manual release in case of need. The rotatable head permits to work in tight locations.

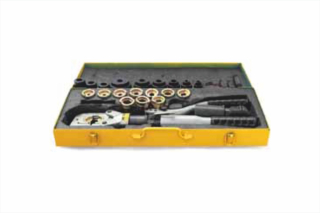

Faster operation with less force thanks to the 2-stage hydraulic system. Closed work head, flip top style, rotatable. Sturdy steel storage box.

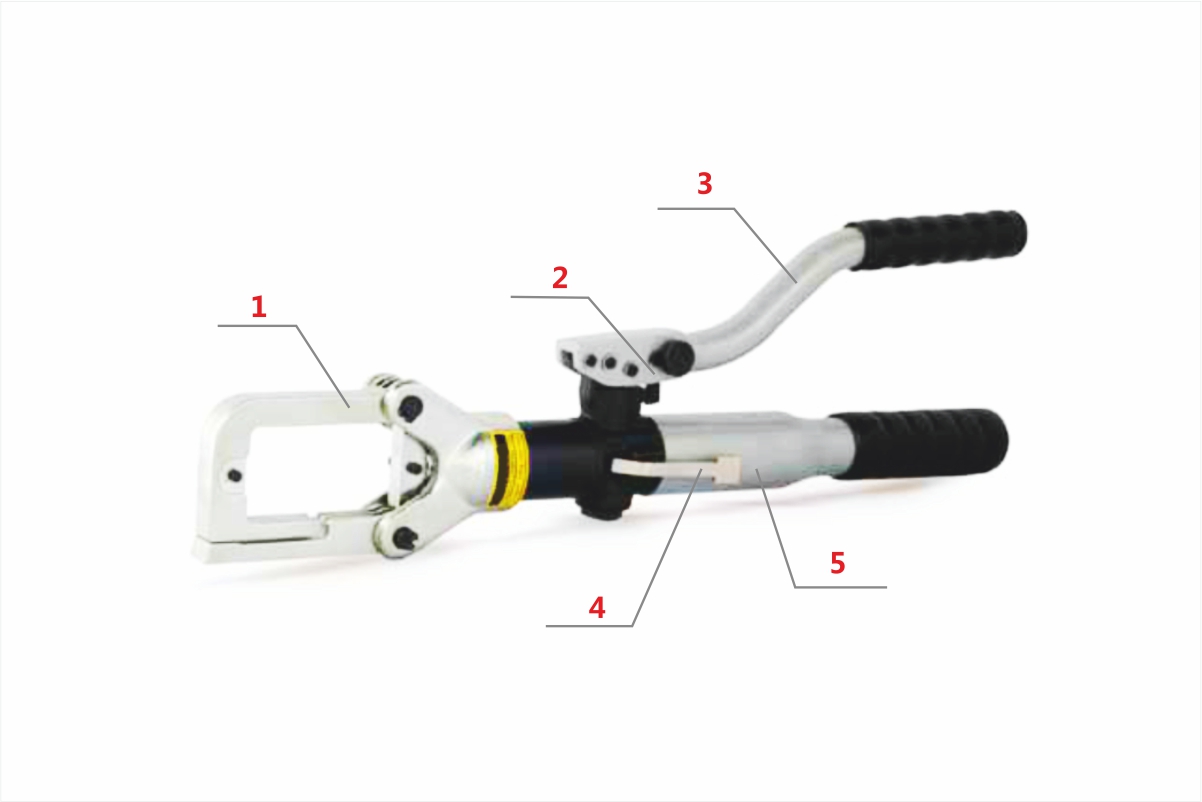

1. Flip top universal head, rotating 330°.
2. Handle lock knob.
3. Aluminum pump lever.
4. Manual release.
5. Aluminum pump housing.
| Set | Size | Pcs |
| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300 mm/mm² | 11 |
| Punching dies | 22,27,34,43,49,60 mm. | 6 |
| Blade | 1 | |
| Adapter for crimping & punching | 1 | |
| Draw stud | М 20х1,5/М10х1 | 1 |
| Spacer | 1 | |
| Seals for the cylinder & safety valve | 1 |
| Code | Model | Hydraulic Ram output Ton |
Ram stroke |
Cutting range mm |
Сrimping range mm² |
Punching range mm |
G.W |
Packing size mm |
| 22501349 | GRY-60H | 6,5 | 42 | Ø 40 (Cu/Al and armoured cable) |
16-300 | Ø 22,5-61,5 | 14,5 | 610х210х110 |
