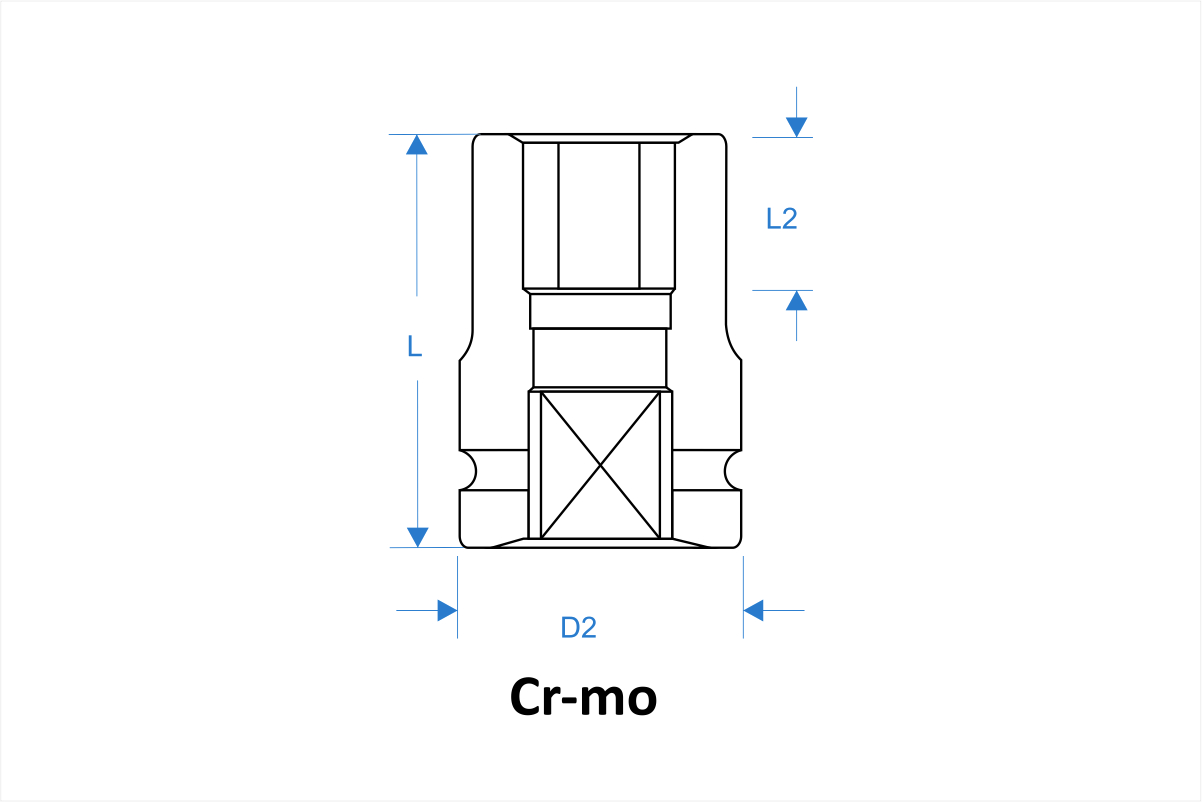

Code	mm	L mm	L2 mm	D2 mm	Code	Zoll	L mm	L2 mm	D2 mm
11206001	30	78	35	86	11206201	1-3/16"	78	35	86
11206002	32				11206202	1-1/4"
11206003	36				11206203	1-5/16"
11206004	38				11206204	1-3/8"
11206005	41	80	37		11206205	1-7/16"
11206006	42				11206206	1-1/2"
11206007	45	84			11206207	1-9/16"	80	37
11206008	46		40		11206208	1-5/8"
11206009	47				11206209	1-11/16"	84
11206010	48				11206210	1-3/4"		40
11206011	50	87			11206211	1-13/16"
11206012	52				11206212	1-7/8"
11206013	54				11206213	1-15/16"	87
11206014	55	90			11206214	2"1-1/2"
11206015	56				11206215	2-1/16"
11206016	58				11206216	2-1/8"	90
11206017	60	92	50		11206217	2-3/16"1
11206018	65	95			11206218	2-1/4"
11206019	70	100	51		11206219	2-5/16"
11206020	75	103	52		11206220	2-3/8"
11206021	80	110			11206221	2-7/16"
11206022	85	118	55		11206222	2-1/2"
11206023	90			95	11206223	2-9/16"
11206024	95				11206224	2-5/8"
11206025	100	125			11206225	2-11/16"	92	50
11206026	105				11206226	2-3/4"	95
11206027	110				11206227	2-13/16"	100	51
11206028	115	135	65		11206228	2-7/8"	103	52
11206029	120				11206229	2-15/16"	110
11206030	125				11206230	3"		55
11206031	130	145	75	127	11206231	3-1/16"
11206032	135	150			11206232	3-1/8"
11206033	140				11206233	3-3/16"
11206034	145				11206234	3-1/4"
11206035	150		80		11206235	3-5/16"	118
11206036	155				11206236	3-3/8"		65
11206037	160	175			11206237	3-7/16"
					11206238	3-1/2"
					11206239	3-9/16"		75
					11206240	3-5/8"
					11206241	3-11/16"
					11206242	3-3/4"			95
					11206243	3-13/16"	125	80
					11206244	3-7/8"
					11206246	3-15/16"
					11206247	4"
					11206248	4-1/16"
					11206249	4-1/8"
					11206250	4-3/16"
					11206251	4-1/4"
					11206252	4-5/16"
					11206253	4-3/8"
					11206254	4-7/16"
					11206255	4-1/2"	135
					11206256	4-5/8"
					11206257	4-3/4"
					11206245	5"	145		127
